Horizontal CNC Milling

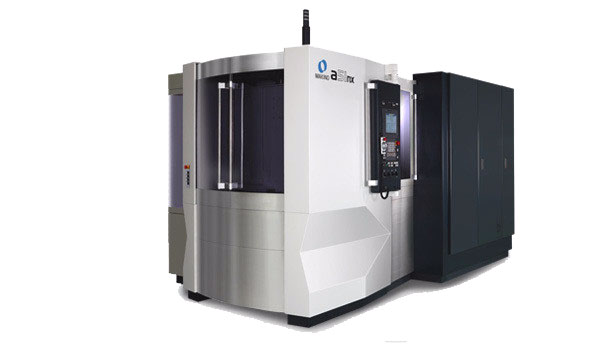

Makino A51nx
400mm Pallets
135 Tool Magazine
14,000 RPM – 30 HP Spindle
Full 4th axis
Tool Breakage Detection
±2.5 μ (0.0001”) Positioning Accuracy
±1.5 μ (0.00006”) Repeatability Accuracy

Vertical CNC Milling

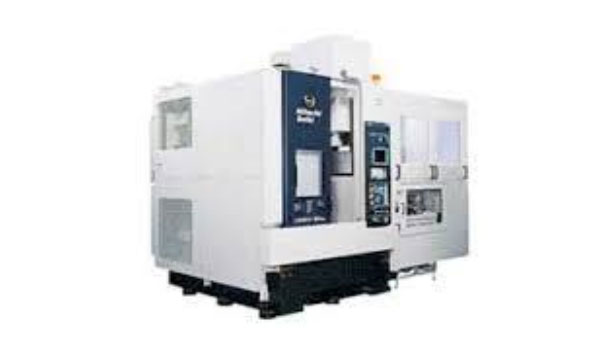

Hitachi Seiki VS50 | YCM NSV102A
40 X 20 X 18 Inch Table Travel
±3 μ (0.00012”) Positioning Accuracy
1 μ (0.00004”) Repeatability Accuracy
12,000 RPM – 30 HP Spindle
30 Tools ATC

High Speed Vertical CNC Milling

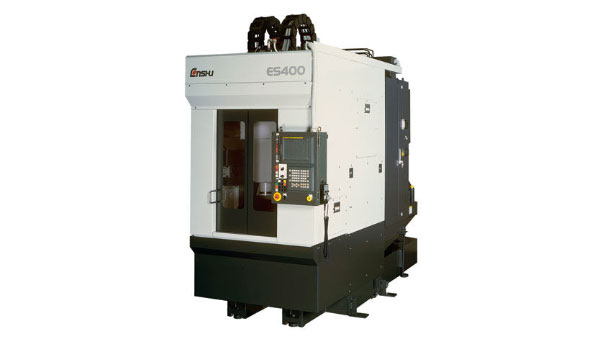

Enshu ES400 (3)
19.7 x 15.75 x 14.96 Inch Table Travel
±5 μ (0.0002”) Positioning Accuracy
±1.5 μ (0.00006”) Repeatability Accuracy
2362 IPM Rapid Feed
13,000 RPM 21 Tools

Enshu S300 | Enshu DTL
1417 IPM Rapid Feed

CNC Turning

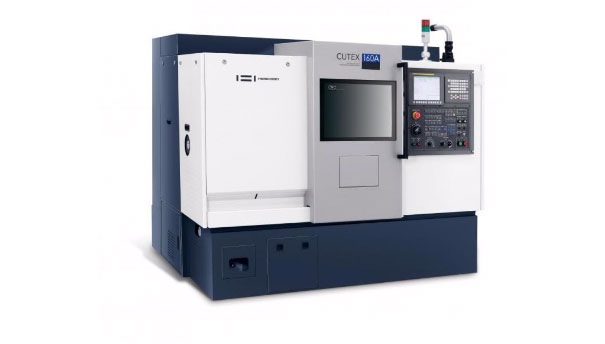

Hwacheon Cutex 160
2.5 μ (0.0001”) Resolution Accuracy
5 μ (0.0002”) X & Z Total Internal Run-out
Fanuc 21T Control
6” Chuck with 12” Maximum Workpiece
2” Bar Stock Capacity

Miyano KNC-45
Chuck, Live-tooling capabilities
5,000 RPM – 10 HP
Twin 6-Station Turret with Live Tooling
5-C Collet Chuck

Emco Maier Turn325
2.5 μ (0.0001”) Resolution Accuracy
5 μ (0.0002”) X & Z Total Internal Run-out
Fanuc 21T Control
4” Maximum Diameter Workpiece

Inspection

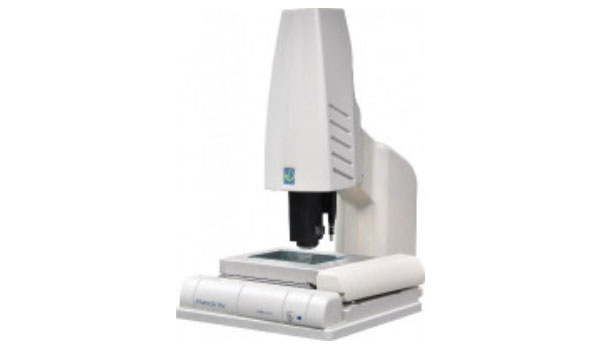

Video Measurement, CMM, Optical Comparators
Wide range of inspection tooling to ensure consistent quality
